Maxi24

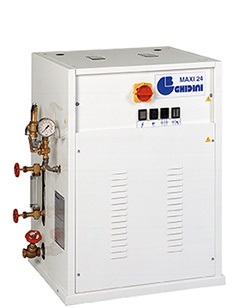

Electric and automatic steam boiler, power between 6 and 22 kW, steam pressure from 1 to 7 bar
Electric and automatic steam boiler, available from 6 to 22 kW. Water feed can be connected directly to the water mains or to a condensate tank. Regulation of the working steam pressure is adjustable between 1 and 7 bar.
Maxi 24 is available with a single group of heaters (three elements) or with two independent sets of heaters (six elements). The boiler shell is manufactured in accordance to the current PED regulations.
Options
- Stainless steel condensate tank
- Double sets of heaters.
- Boiler body in stainless steel AISI 304
- All components in contact with water in stainless steel AISI 304
|
Technical Specifications
|
MAXI 24
|
|
Voltage
|
230V/400V/3/50-60 Hz
|
|
Steam working pressure
|
0,3 ÷ 7 bar
|
|
Boiler capacity
|
24.9 l
|
|
Pump motor
|
0.55 kW
|
|
Steam tap height
|
620 mm
|
|
Condensate recovery
|
380 mm
|
|
Overall dimensions
|
580x660x730 mm
|
|
Net weight
|
85 Kg
|
|
Gross weight (crate)
|
111 Kg
|
|
Packing dimensions
|
880x730x1050 mm
|
|
Available electric powers and steam output
|
|
MAXI 24 (one set of heaters)
|
MAXI 24 (two sets of heaters)
|
|
kW
|
Kg/h
|
kW
|
Kg/h
|
|
6
|
8,10
|
4+4
|
11
|
|
7
|
9,5
|
6+6
|
16
|
|
10
|
13,5
|
7+7
|
18,5
|
|
12
|
16
|
8+8
|
21
|
|
15
|
20
|
10+10
|
26,5
|
|
18
|
24,5
|
15+7
|
29,7
|
